MULTI-LEVEL ORDER PICKER LO2.5

The Hyster LO2.5 can all but eliminate the need for a merge process. Efficient picking from multiple zones across a large warehouse often requires a pallet truck and high level order picker.

  • Rated Capacity:

    2500 kg

  • Fork Length:

    2411 mm

  • Body Width:

    796 mm

  • Turning Radius:

    990-1747 mm

1 4

COMFORTABLE AND CONFIDENT OPERATORS

The LO2.5 Series is specifically designed to ensure picking operators enjoy an enhanced working environment, with a resulting reduction in fatigue and increase in efficiency. Intelligently engineered features reduce operational effort and the distance the operator has to reach when picking from rack to pallet increasing efficiency and reducing fatigue.

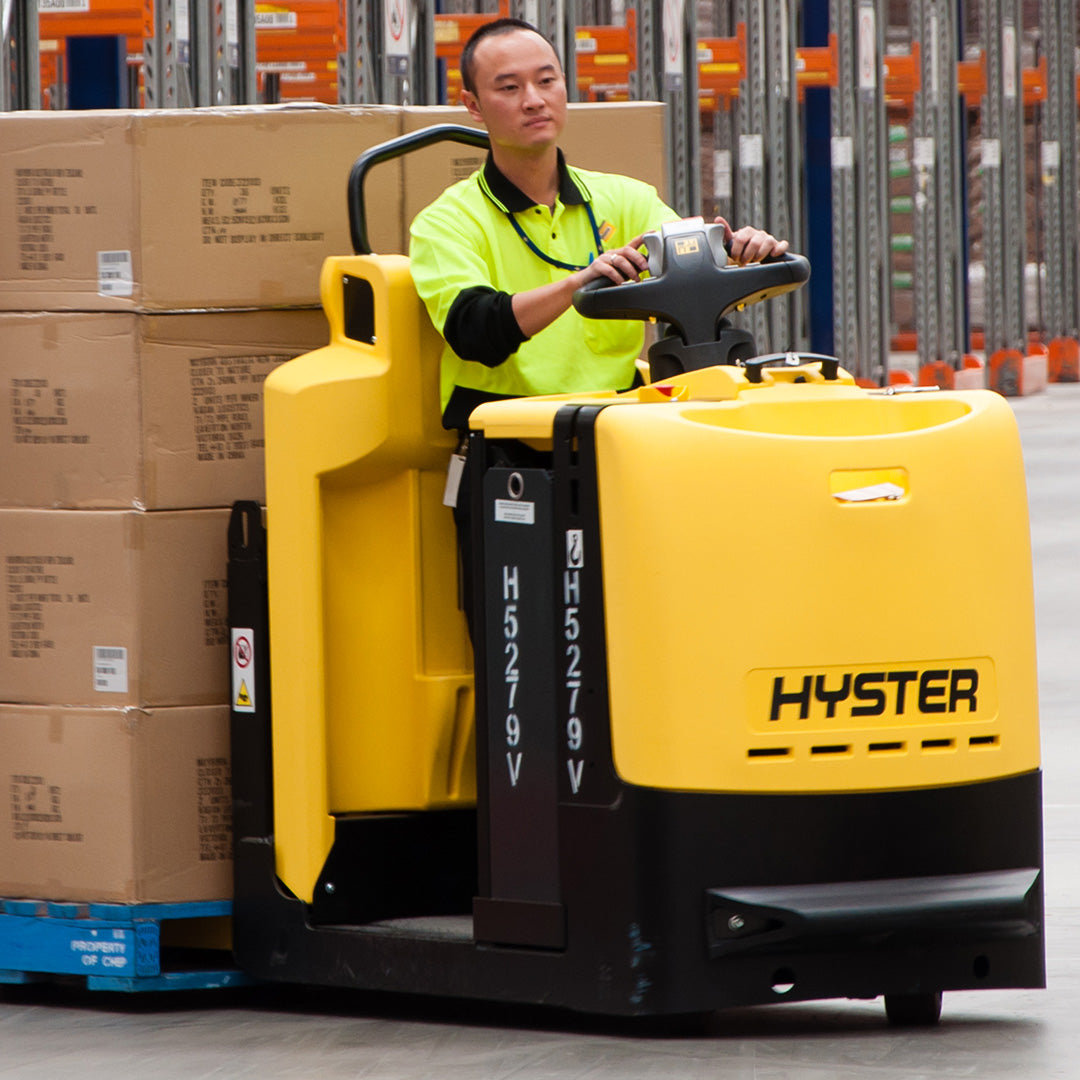

PUSHING PRODUCTIVITY IN THE RIGHT DIRECTION

When you want to pick more product faster, without the introduction of more pick zones and travel time, the LO2.5 is an ideal solution. Its adjustable performance settings allow the truck to be customized to the needs of the application and operator. In new and existing facilities this means that more can be stored and moved quicker, in a smaller footprint and with less touches.

POWER STEERING

Fully adjustable power steering reduces operator fatigue for greater productivity and reduces steering effort by up to 90% and varies the amount of steer “assist” based on the control handle position, steer tire angle and truck travel speed.

COAST CONTROL

Slow-speed forward and reverse direction buttons located on both sides of the backrest allow the operator to walk alongside the truck to the next pick location reducing fatigue and improving efficiency.

CONTROL HANDLE

The optimized ergonomics of the control handle reduces arm movement required to change direction, allowing the operator to remain within the truck footprint at all times for protection as well as reducing operator fatigue and increasing productivity. The wrap around design keeps the operator’s hands within the interior perimeter of the handle and the large control buttons are conveniently positioned reducing fatigue and repetitive movement

OPERATOR PLATFORM

The low step height of just 6 inches provides easy on/off access while the floor compartment area easily accommodates large steel toe boots. High operator backrest, soft to the touch and contoured, allows the operator to locate the most comfortable operating position.

Choose from available selections

Lift Capacity

  • LO2.5P (2500 kg)

Fork Length

  • LO2.5P (800/1400/1800 mm)

Tires

  • NDIIthane
  • Dtnaroll
  • Redthane

Battery Type

  • Lithium Ion
